1_LIGHT_AIRBORNE_MARKER_BEACON

Published:2009/7/16 5:20:00 Author:Jessie | From:SeekIC

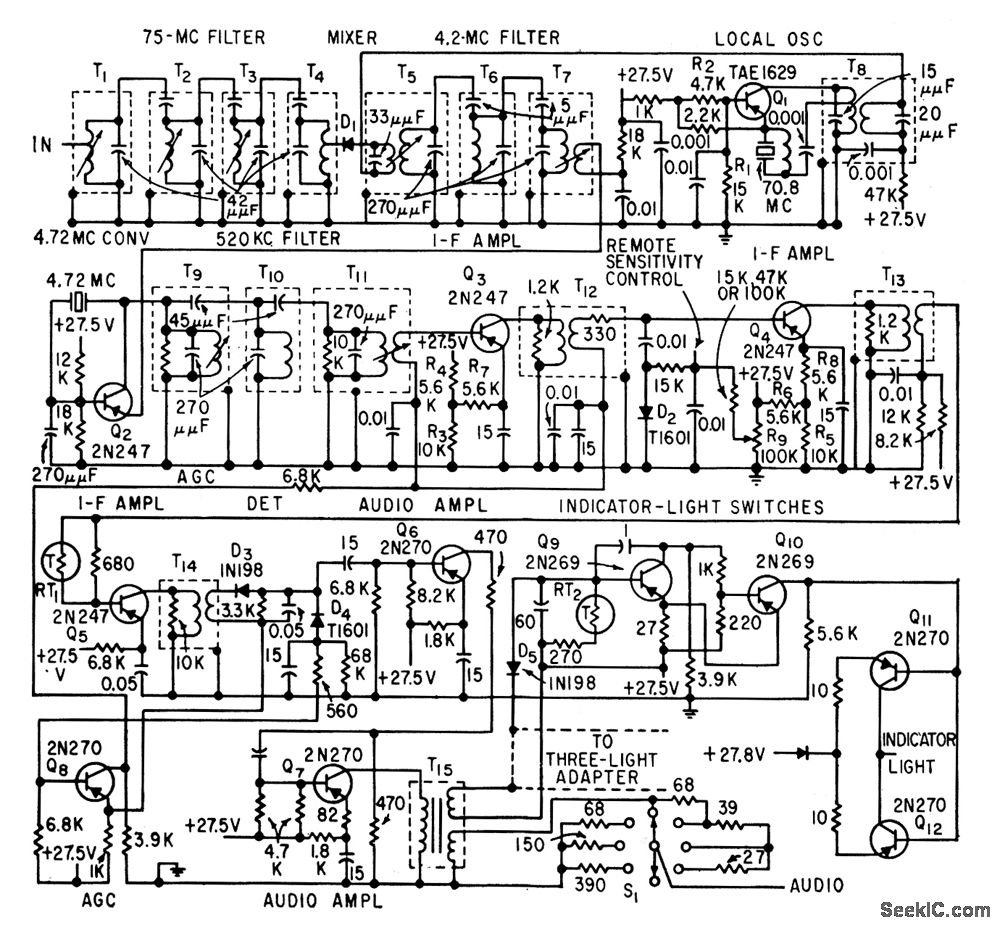

Dual-conversion 75-Mc receiver has high first i-f for good image rejection and lower second i-f for stable gain. Responds to any of three modulating frequencies (3,000 cps airways, 400-cps outer runway, and 1,300-cps middle runway).-R, G. Erdmann, Transistor Dual Conversion for Marker-Beacon Receivers, Electronics, 32:19, p 59-61.
