1_9_kHz_PLL

Published:2009/7/5 22:15:00 Author:May | From:SeekIC

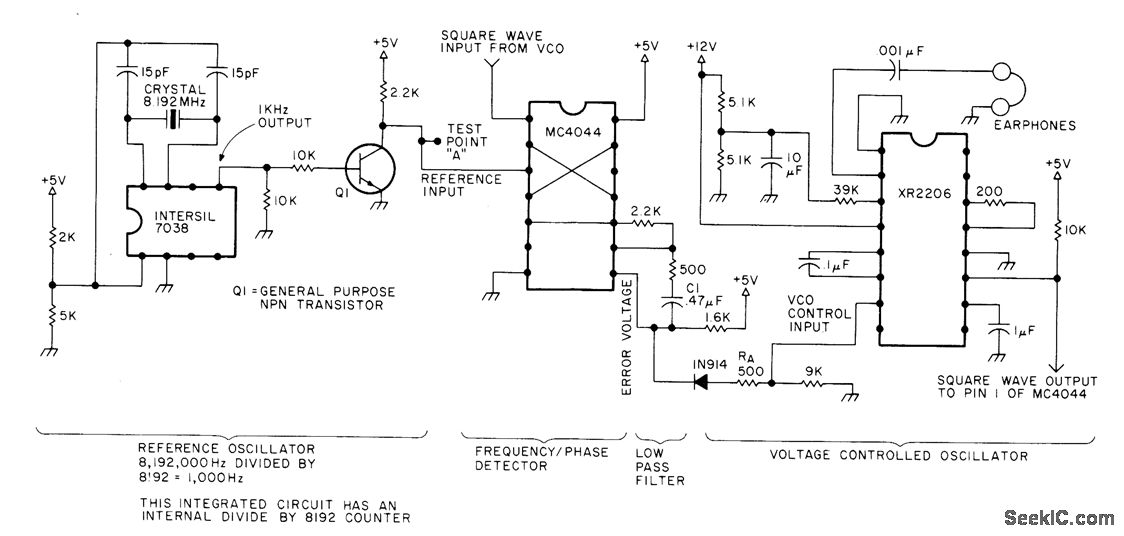

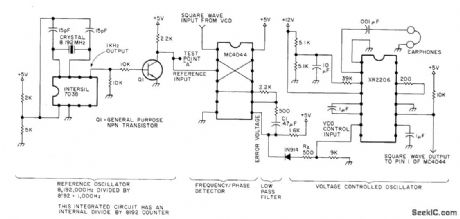

Simple experimental phase locked loop circuit synthesizesfrequencies in audio range, for easy monitoring with headphones.Article gives theory of operation and setup procedure.-.G.R.Allen ,Synthesize Yourself,73Magazine,Oct.1977,p 182-188.
