1_50_kHz_SINE_WAVE

Published:2009/7/5 20:43:00 Author:May | From:SeekIC

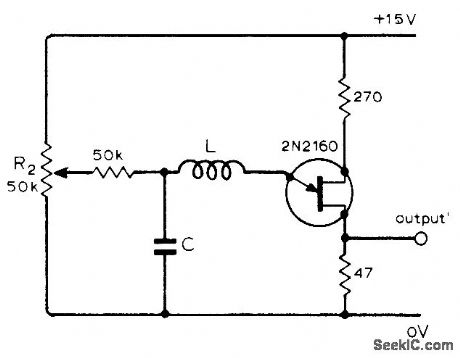

Uses unijunction transistor as negative resistance in simple RLC circuit, Maximum output with good waveform is about 200 mV. Exact frequency depends on values used for L and C.-R. P. Hart. Simple SineWave Oscillator, Wireless World. July 1976. p 34.
