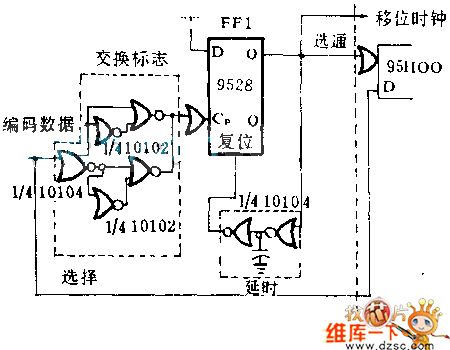

1GHZ Manchester decoding circuit diagram

Published:2011/3/25 2:39:00 Author:Ecco | Keyword: Manchester decoding | From:SeekIC

Adopting ECL trigger, the turnover frequency of the circuitry is higher than 1 GHZ that makes decoding in the velocity of 4,000,000,000,000 bit in one second be possible. The circuitry is suitable for 48,000,000,000,000 telemetering. And it adopts PCM on unipole optical cable.
