16_W_4003200_CPS_SQUARE_WAVE_INVERTER_DRIVE

Published:2009/7/15 5:07:00 Author:Jessie | From:SeekIC

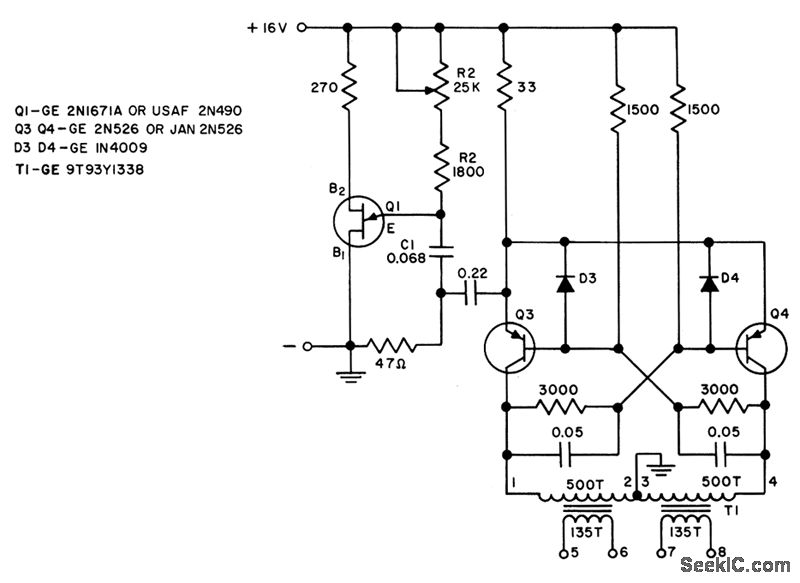

Uses transistor mvbr with unijunction transistor to stabilize and control frequency Efficiency is 85%. Has good fro. quency stability. Square-wave outputs are used lo drive d-c to a-c inverter. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 236.
