16_30_MHz_20_W_LINEAR_DRIVER

Published:2009/7/14 4:09:00 Author:May | From:SeekIC

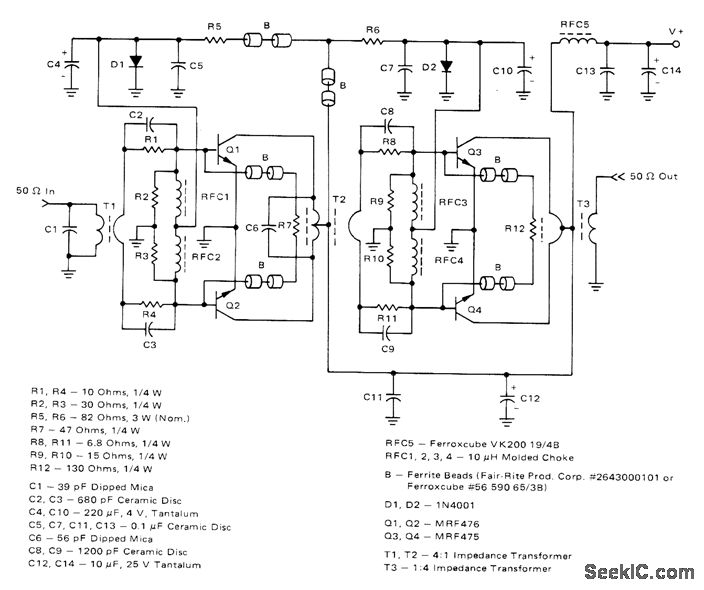

Broadband amplifier using inexpensive plastic RF power transistors provides total power gain of about 25 dB for driving SSB transmitter power amplifiers to levels up to several hundred watts. Supply is 13.6 V. Circuit is stable even with load mismatches of 10:1.-H. 0. Granberg, Low-Distortion 1.6 to 30 MHz SSB Driver Designs, Motorola, Phoenix, AZ, 1977, AN-779, p 3.
