15_V_SINGLE_SUPPLY

Published:2009/7/20 21:37:00 Author:Jessie | From:SeekIC

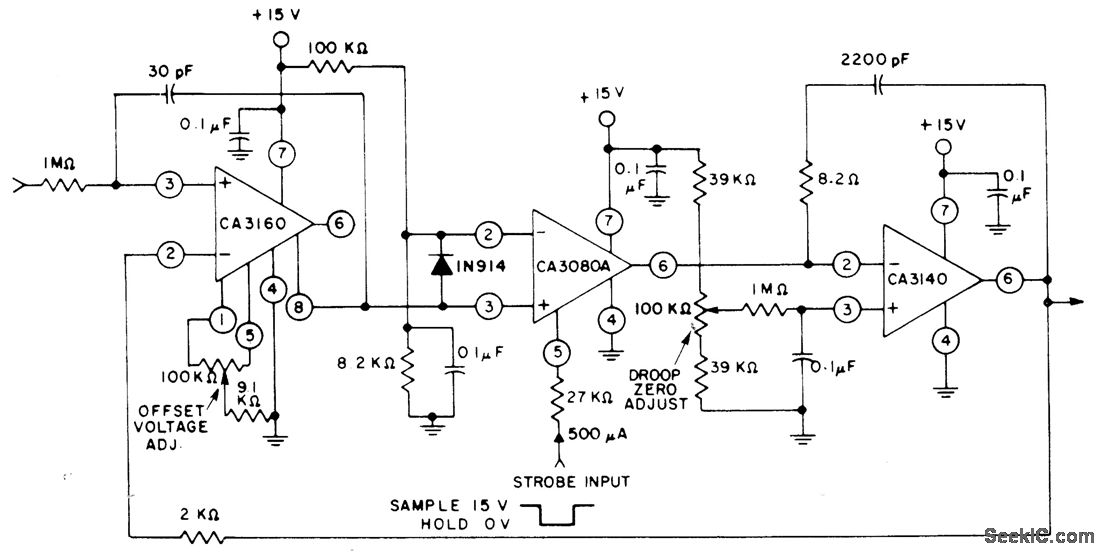

CA3160 opamp provides high input impedance and input voltage range of 0-10V. CA3080A functions as strobed current source for CA3140 output integrator and storage capacitor. Pulse droop during hold interval can be reduced to zero by adjusting 100K pot.- Linear Integrated Circuits and MOS/FET's, RCA Solid State Division, Somerville, NJ, 1977, p 271-272.
