15_GHz_PRESCALER

Published:2009/7/6 1:55:00 Author:May | From:SeekIC

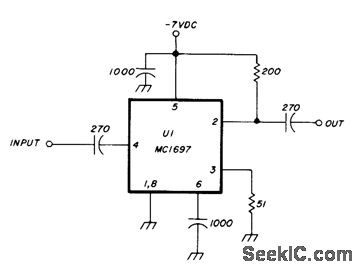

Motorola MC1697 IC provides division by 4 to extend operating range of 400-MHz counter above 1.5 GHz. Circuit will operate on input signals as low as 1 mW. Requires 60-mA power supply at -7 V.Article gives construction and test details.-J.Hinshaw, 1.5 GHz Divide-by-Four Presealer, Ham Radio, Dec, 1978, p 84-86.
