1.5V power supply making circuit

Published:2011/7/5 19:42:00 Author:Christina | Keyword: 1.5V, power supply, making circuit | From:SeekIC

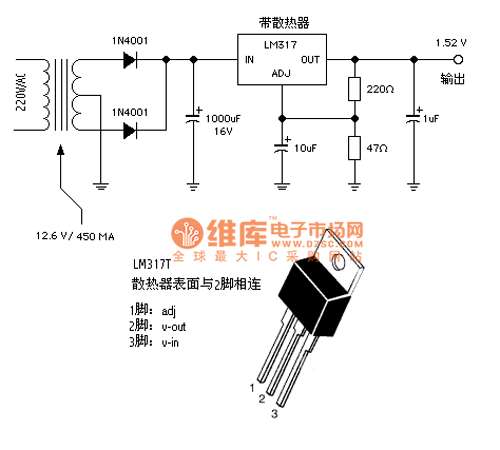

Some portable electronic devices such as the walkman and the MD often use the 1.5 V power supply. Some times you need to use the 1.5V power supply to replace battery. Here I introduce the 1.5V power supply circuit which is composed of the LM317T. This circuit is simple and has good performance, if you connect it according to the figure, you need not to debug it.
