150_MC_CLOCK_GATE_AND_DRIVER

Published:2009/7/16 Author:Jessie | From:SeekIC

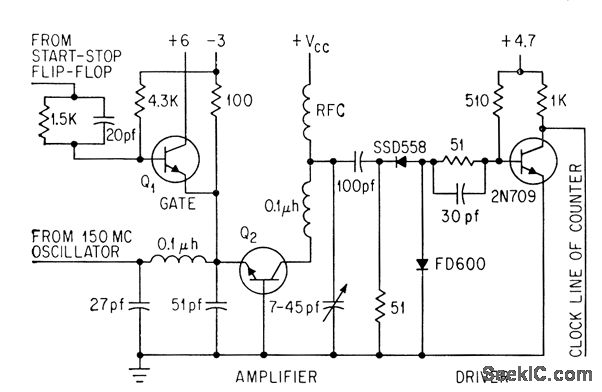

When gale transistor Q1 (2N2368) is turned on, 200-Mc bandwidth amplifier Q2 is off to provide isolation and permit switching within one cycle of dock. Driver output goes to decade counter.-L. C. Drew, Using Microcircuits in High-Resolution Range Counters, Electronics, 36:47, p 31-33.
