1500V isolating circuit of D/A convertor

Published:2011/4/2 3:00:00 Author:may | Keyword: 1500V, isolating, D/A convertor | From:SeekIC

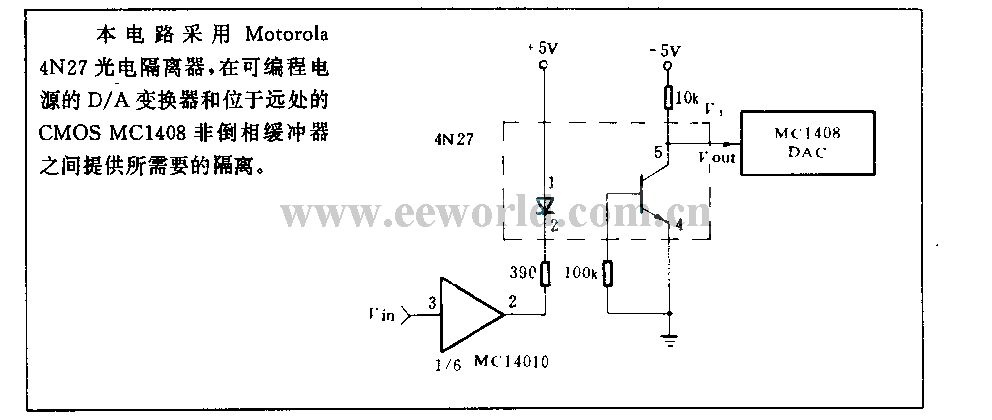

This circuit uses Motorala 4N27 optoelectronic isolator. It offers needed isolate between D/A convertor of programmable power supply and CMOS MC1408 noninvert buffer on the beyond.
