13O_V_P_P_DRIV

Published:2009/7/2 8:00:00 Author:May | From:SeekIC

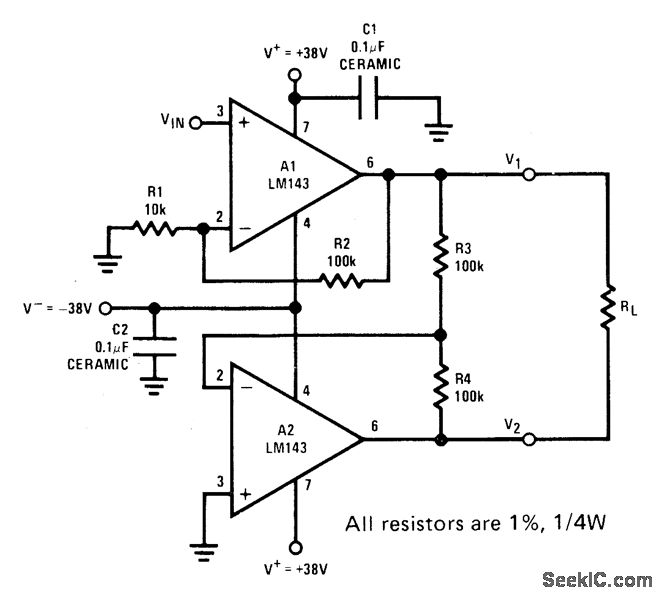

Two LM143 high-voltage opamps operating from 38-V supply can provide up to 138 V P-P undipped into 10K floating Ioad when connected as shown to give noninverting voltage amplifier followed by unity-gaininverter. Power supplies should be bypassed to ground with 0.1-μF capacitors. - Linear Applications, Vol. 2. National Semiconductor, Santa Clara. CA. 1976. AN-127. p 1-3.
