133MHz multi-channel output clock pulse driving circuit

Published:2011/5/19 20:45:00 Author:Christina | Keyword: 133MHz, multi-channel, output clock, pulse driving circuit | From:SeekIC

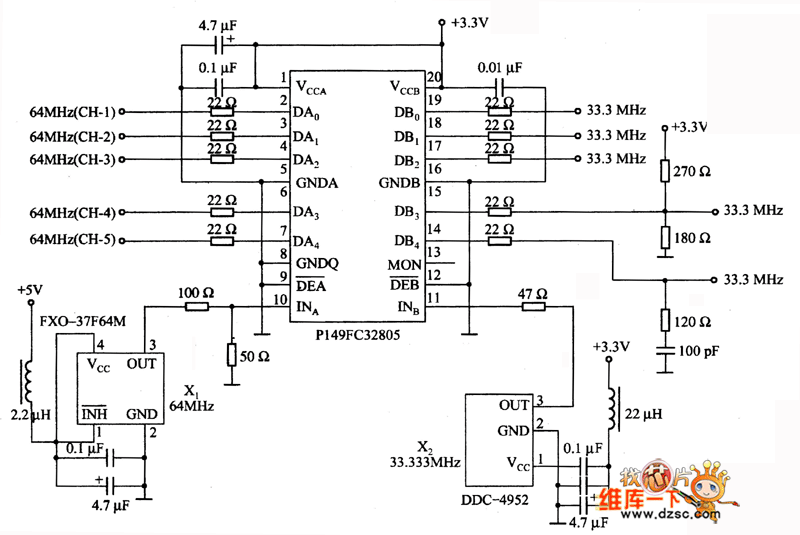

The 133MHz multi-channel output clock pulse driving circuit is as shown. It uses the clock pulse driving circuit which is composed of the P149FC32805, the maximum clock frequency is 133 MHz, and it can be used to distribute the base board internal clock signal. Output delay time is less than 270ps for synchronous management.
