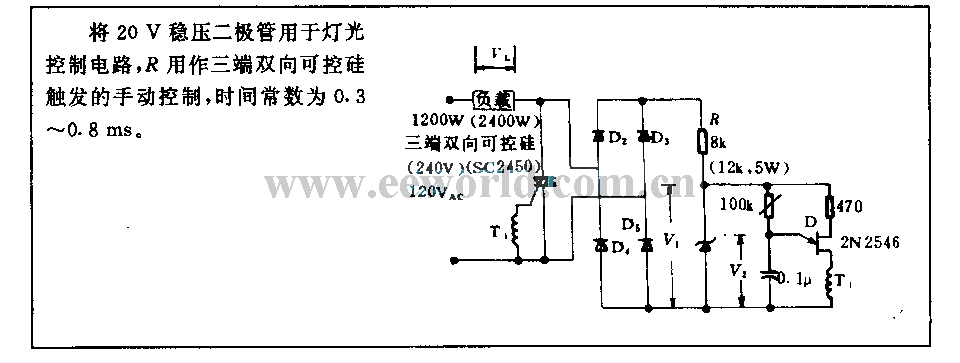

1.2kw unijunction transistor TRIAC circuit

Published:2011/3/22 20:18:00 Author:muriel | Keyword: 1.2kw, unijunction transistor, TRIAC | From:SeekIC

20V Zener diode will be used for lighting control circuit, R is usedfor the manual control ofTRIAC, the time constantis 0.3ms~0.8ms.
