12_bit_straight_binary_D_A_converter

Published:2009/7/23 21:37:00 Author:Jessie | From:SeekIC

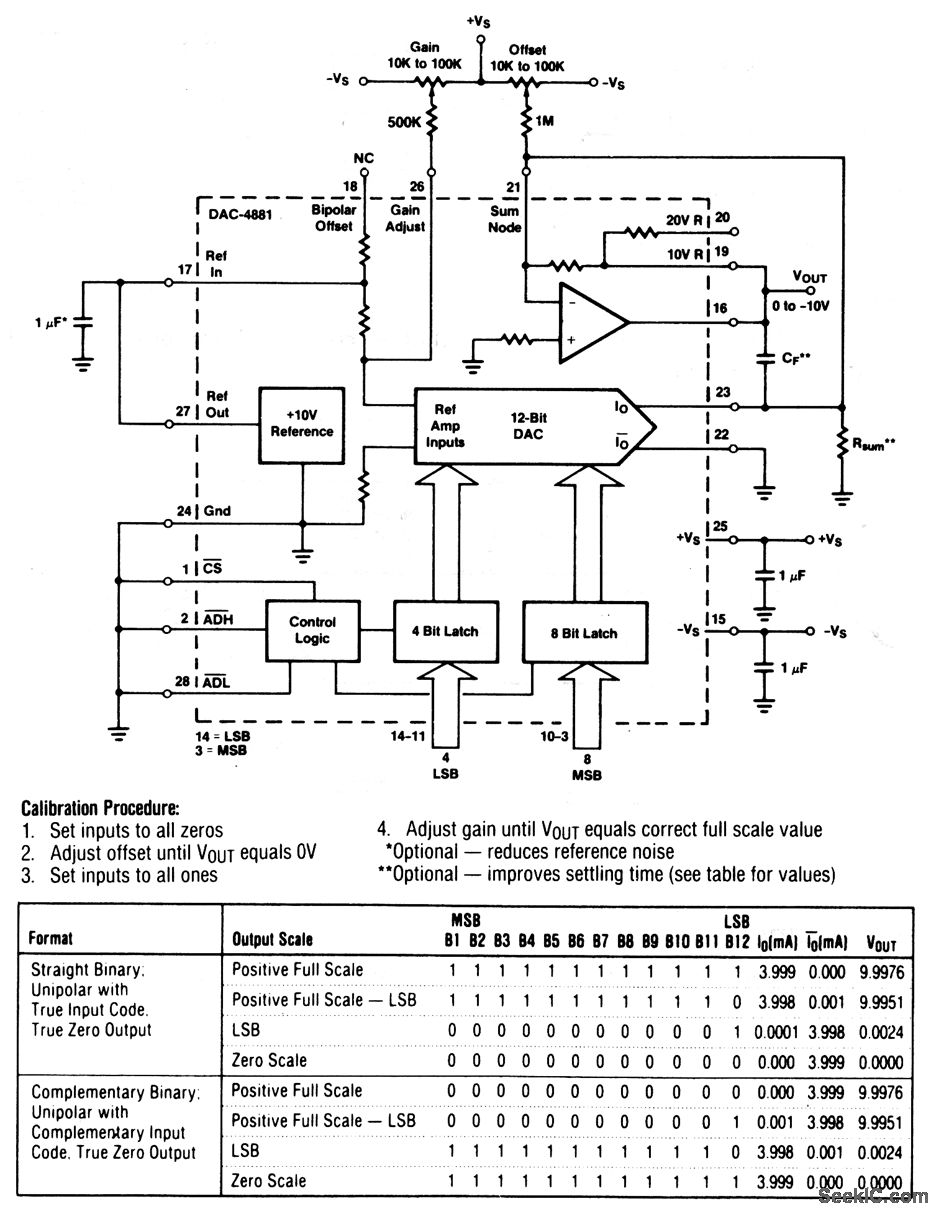

This circuit uses a DAC-4881 and a few external components to form a stand-alone, 0-to -10-V, D/A converter with both gain and offset adjustments for calibration.
