12_V_FLUORESCENT

Published:2009/7/5 23:21:00 Author:May | From:SeekIC

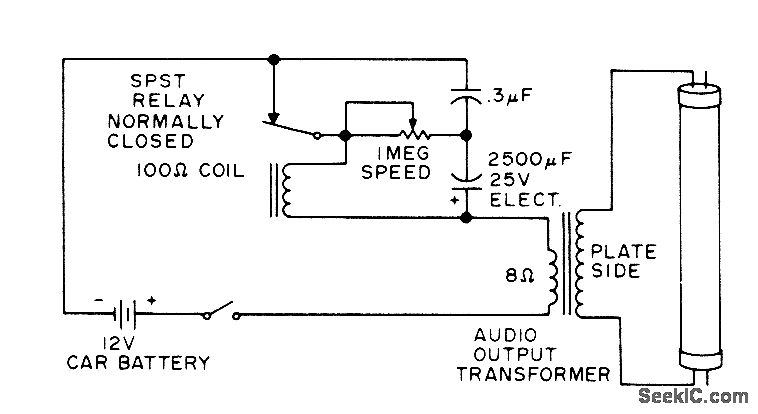

Relay acts as mechanical DC/AC converter operating off 12-V car battery.Each time relay opens, inductive kick in relay coil is stepped up by outputtransformerto high enough voltage for ionizing 24-inch fluorescent tube, giving flash that can serve as emergency flasher when car breaks down.-Circuits, 73 Magazline, June 1975, p 175.
