12_LED_SEQUENTIAL_DRIVER

Published:2009/7/13 3:49:00 Author:May | From:SeekIC

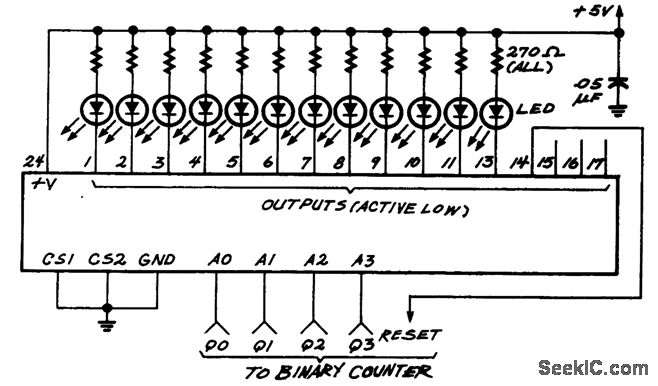

A demultiplexer selects a different LED for each binary number at its input. The counter resets after a count of 12.
