1200_1_PULSE_WIDTH_MONO

Published:2009/7/16 13:07:00 Author:Jessie | From:SeekIC

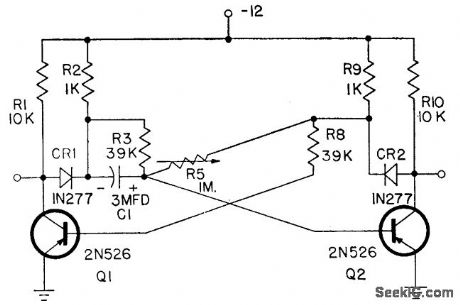

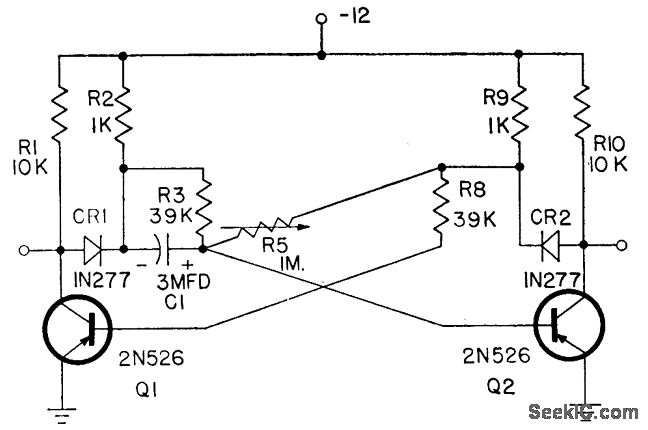

Output pulse width at collector of Q2 can be varied from 0.5 to 300 millisec. With suitable trigger, serves as one-shot for variety of uses.-Wide Range Variable Multivibrator, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y., 1965, p 110.
