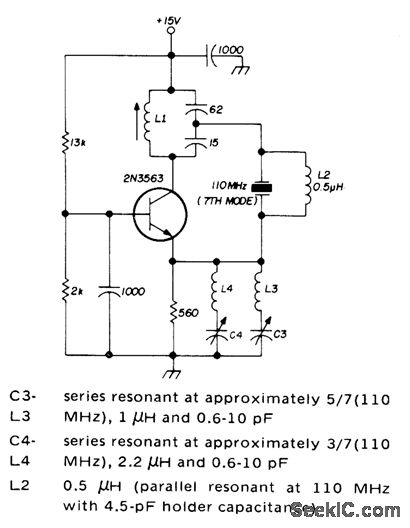

110_MHz_ON_SEVENTH_OVERTONE

Published:2009/7/5 20:41:00 Author:May | From:SeekIC

Requires only one doubler for use in 220-MHz amateur band Series-resonant traps are at frequencies of undesired lower modes.－H. Olson、 Frequency Synthesizer for 220 MHz,Ham Radio,Dec .1974,p 8－14.
