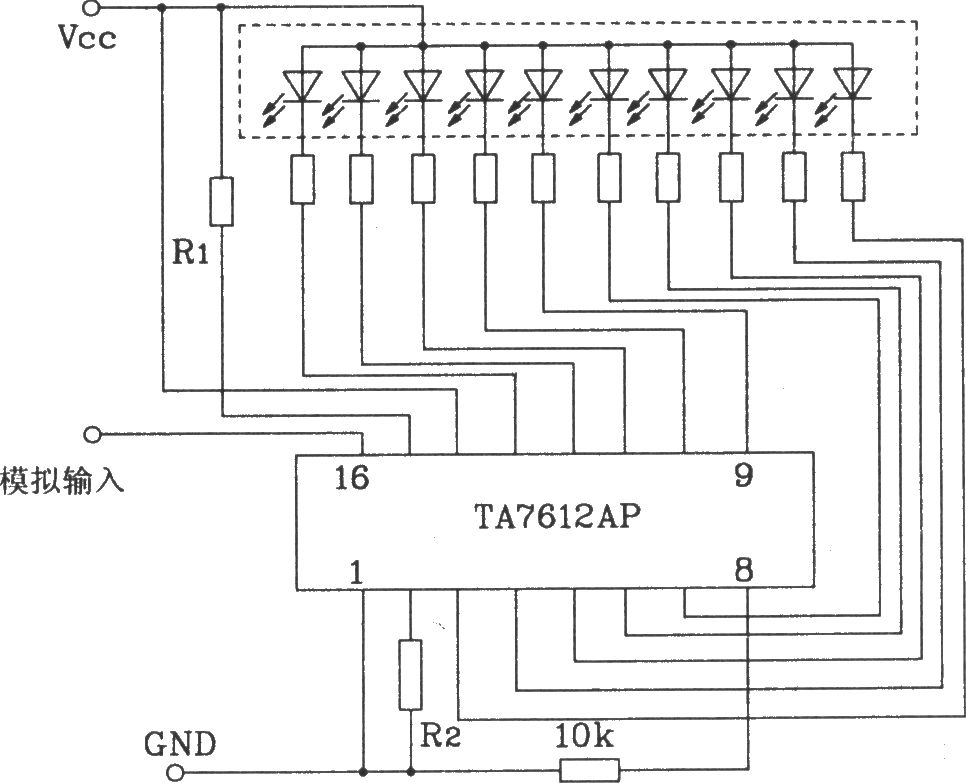

10-point common-anode logarithmic display driver circuit using TA7612AP

Published:2012/10/31 21:04:00 Author:Ecco | Keyword: 10-point , common-anode, logarithmic display, driver | From:SeekIC

This circuit's input signal is an analog voltage input which is displayed on a logarithmic scale.
