10_h_FET

Published:2009/7/12 20:53:00 Author:May | From:SeekIC

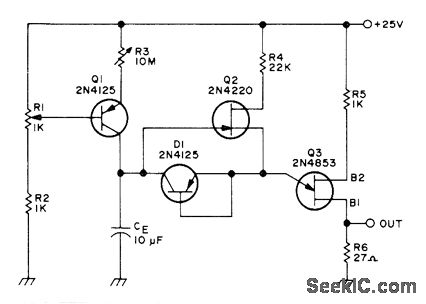

Long duration timer gives adjustable delays up to 10 hours before turning Q3 on to give output voltage.-Circuits, 73 Magazine, Feb. 1974, p 101.
