10_W_FOR_220_MHz

Published:2009/7/14 2:54:00 Author:May | From:SeekIC

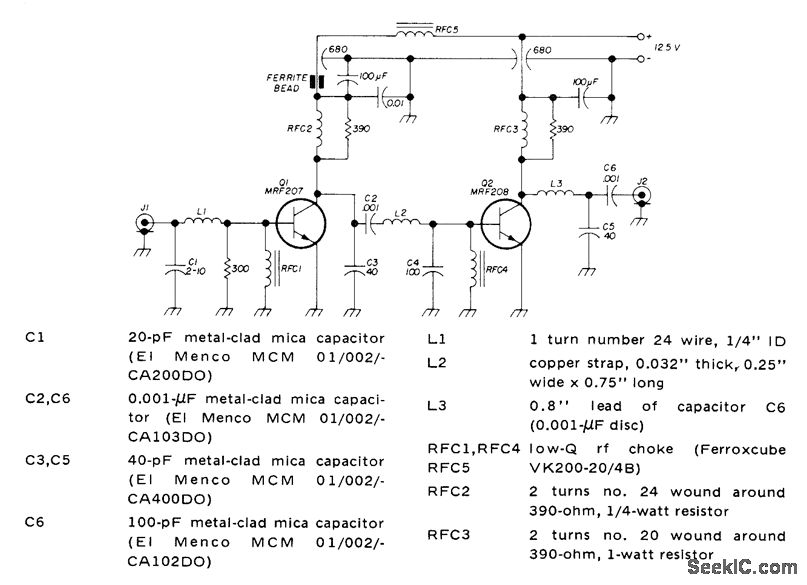

Class C RF power amplifier for VHF FM transmitter has stable gain of 20 dB for operating bandwidth of 40 MHz. Article gives design procedure using Smith chart and covers construction and tune-up.-J. DuBois, 220-MHz BF Power Amplifier for VHF FM, Ham Radio, Sept. 1973, p 6-8.
