10_W_DUMMY_LOAD

Published:2009/7/13 3:54:00 Author:May | From:SeekIC

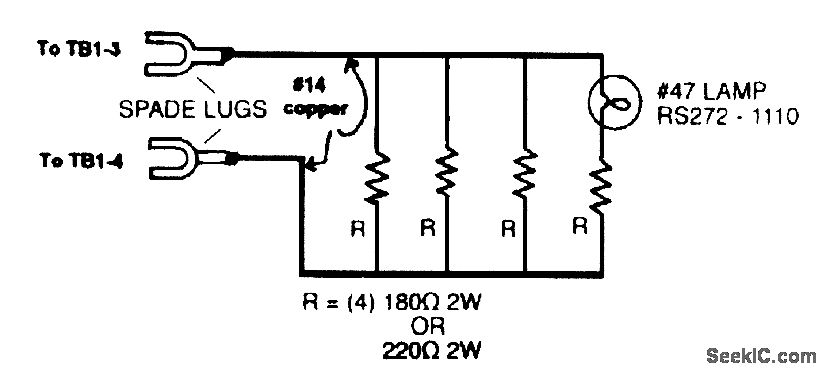

This dummy load was intended for tune-up of a 10-W CW ham rig. It should be useful for general-purpose applications in the HE range. The spade lugs shown can be replaced with a UHF connector for more versatility. The lamp acts as a relative power indicator.
