10_POINT_STEPPER

Published:2009/7/13 4:19:00 Author:May | From:SeekIC

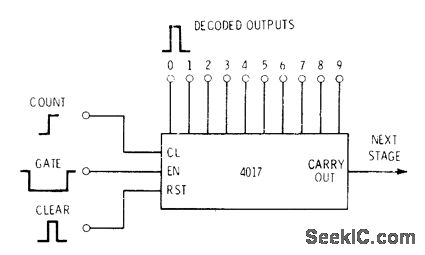

4017 divide-by-10 counter routes input clock signal sequentially to each of ten output lines, with only selected output going high. Intemal circuit of IC is self-clearing walking ring that is glitch-free, with minimum overlap between outputs. Counters can be cascaded to provide more steps. -D. Lancaster, CM0S Cookbook. Howard W. Sams, Indianapolis, IN, 1977, p 309.
