10_MICROSEC_MONOSTABLE_MVBR

Published:2009/7/15 5:28:00 Author:Jessie | From:SeekIC

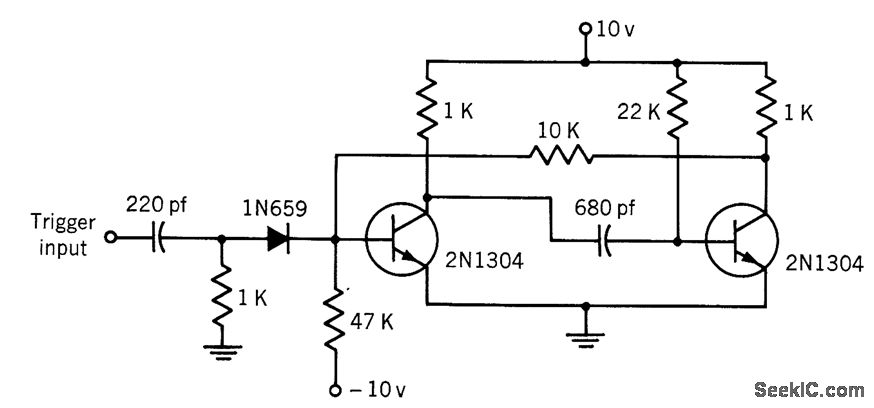

Output pulse width is approximately 10 microsec with values shown for basic one-shot. -Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 381.
