10_MHz_WWV_TO_80_METER_SW_CONVERTER

Published:2009/7/10 0:50:00 Author:May | From:SeekIC

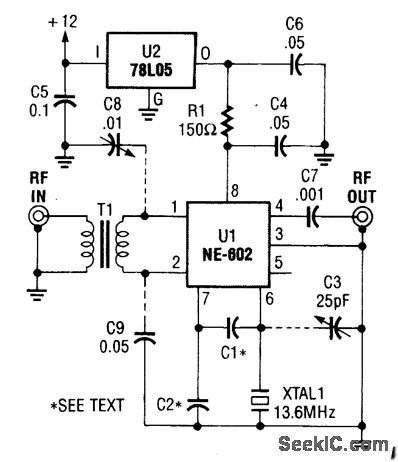

This converter is useful where reception of WWV is desirable and only a ham-band receiver is available. U1 acts as a mixer/oscillator. The values of C1 and C2 are given by:
