10_MHz_FUNCTION_GENERATOR

Published:2009/7/14 23:39:00 Author:Jessie | From:SeekIC

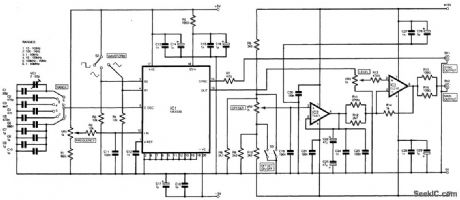

This circuit is built around the MAX038 IC and can provide sine, square, and triangle waveforms from 10 Hz to 10 MHz. PC-board layout techniques suitable for 50 MHz or higher should be used for best results with this circuit.
