10_MEGABIT_LINK

Published:2009/7/2 3:08:00 Author:May | From:SeekIC

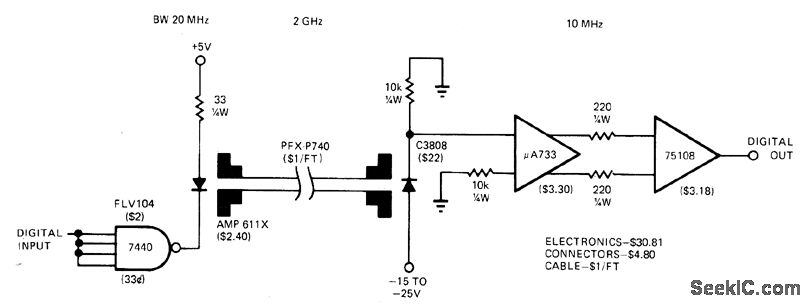

Transmitter and receiver for fiber-optiC data link between teleprinter and microDrocessor utilize wide bandwidth of cable for transmitting data at 10-megabit rate. Receiver input requires C3808 PIN photodiode.-O.E. Marvel and J. C. Freeborn. A Little HandsOn Experience llluminates Fiber-Optic Links,EDN magazine Nov,5,1977,p 71-75.
