10_Hz_HIGH_PASS_UNITY_GAIN

Published:2009/7/2 9:20:00 Author:May | From:SeekIC

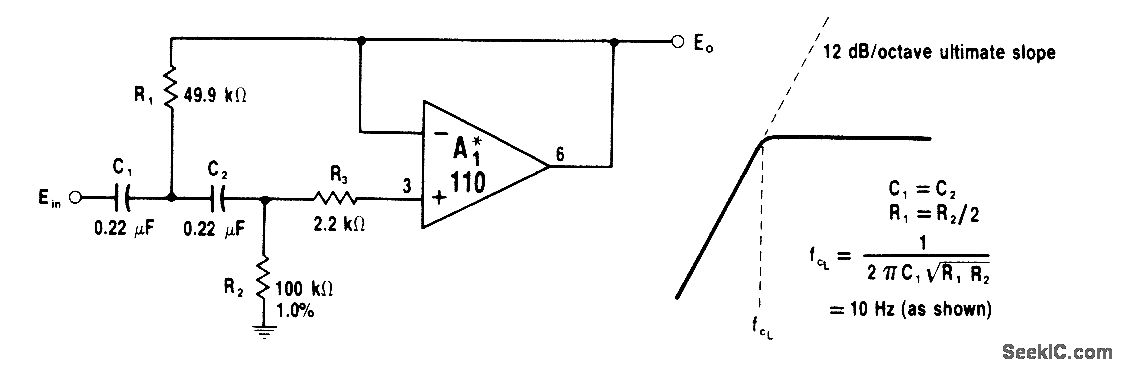

Low cutoff frequency is 10 Hz in active filter using opamp as voltage-controlled voltage source. Altemative opamps can be 1556 and 8007.-W.Jung, IC OpAmp Cookbook, Howard Sams, Indianapolis, IN, 1974, p 331-333.
