10_GHz_WAVEGUIDE_TEST_ANTENNA_SETUP

Published:2009/7/13 3:31:00 Author:May | From:SeekIC

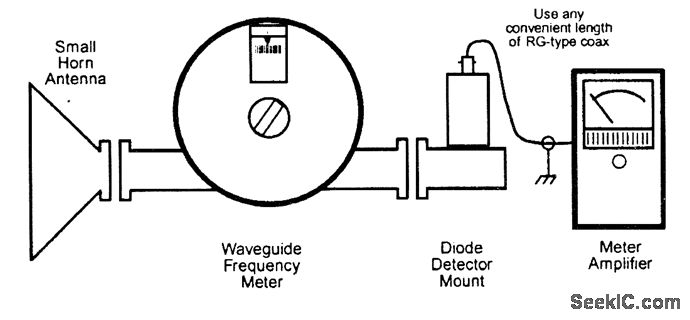

This waveguide test antenna, wavemeter, and meter amplifier setup uses a small horn antenna and a variable commercial waveguide frequency meter to determine RF frequency. RF is sampled with a detector and displayed on an amplified meter for sensitive meter indications.
