107_MHz_FM_IF_amplifier_with_detector

Published:2009/7/20 3:04:00 Author:Jessie | From:SeekIC

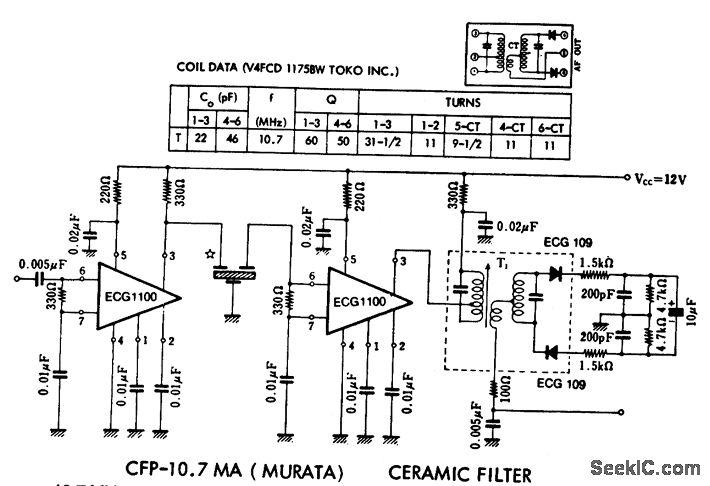

10.7 MHz FM IF amplifier with detector.coil data for the transformer is shown in the table,The ECG1100 is a 7-pin module,Typical voltage gain per unit is 56 dB,Total supply current for the entire circuit is 21 mA.The detector output for a 60 dB Input is go mV(courtesy GTE Sylvania Incorporated).
