100_MC_CASCADED

Published:2009/7/10 5:23:00 Author:May | From:SeekIC

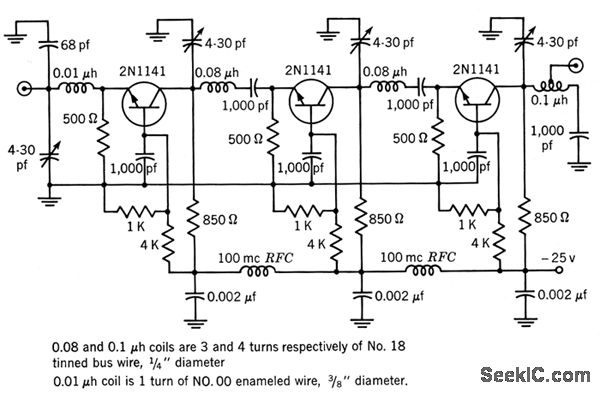

Uses mismatch design technique to obtain desired overall gain of 37.5 db at bandwidth of 9 Mc for three cascaded stages.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y.,1963,p 290.
