100_Hz

Published:2009/7/20 2:54:00 Author:Jessie | From:SeekIC

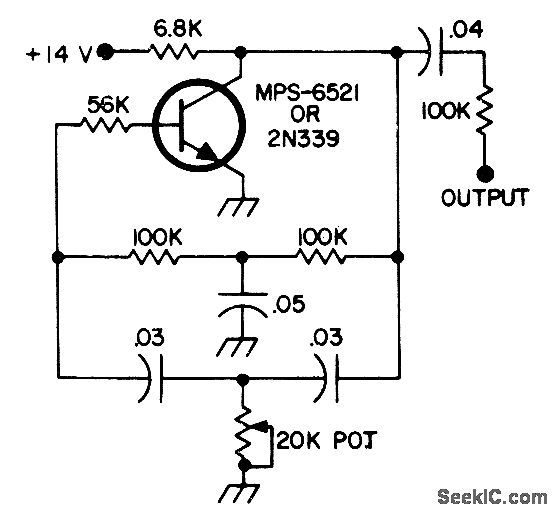

Simple and stable subaudible tone generator serves for access to FM repeaters.Frequency is adjusted to that of repeater with 20K pot. Will operate from car battery.-Circuits, 73 Magazine, Sept. 1973, p 143.
