10000_1_KV_PULSES_PER_SECOND

Published:2009/7/20 2:03:00 Author:Jessie | From:SeekIC

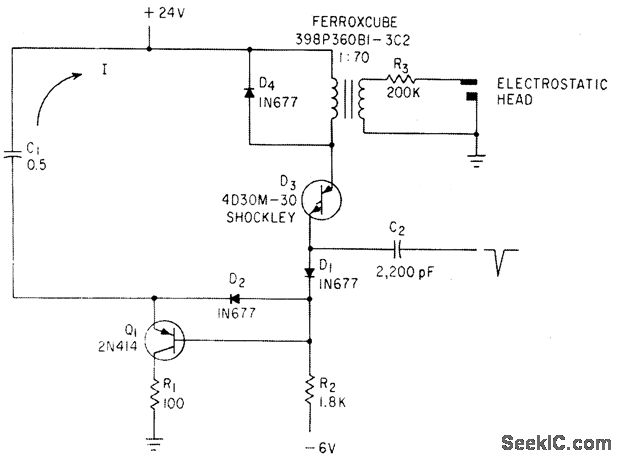

Four-layer diode D3 discharges C1 through pulse transformer and transistor Q1 prevents diode front remaining in conducting state. Used in electrographic recorder.-N. C. Hekimian and P. M. Schmitz, Four-Layer Diode Triggers High-Voltage Pulse Generator, Electronics, 34:26, p 84-85.
