0_35_MHz_WITH_GAIN_OF_10

Published:2009/7/8 21:14:00 Author:May | From:SeekIC

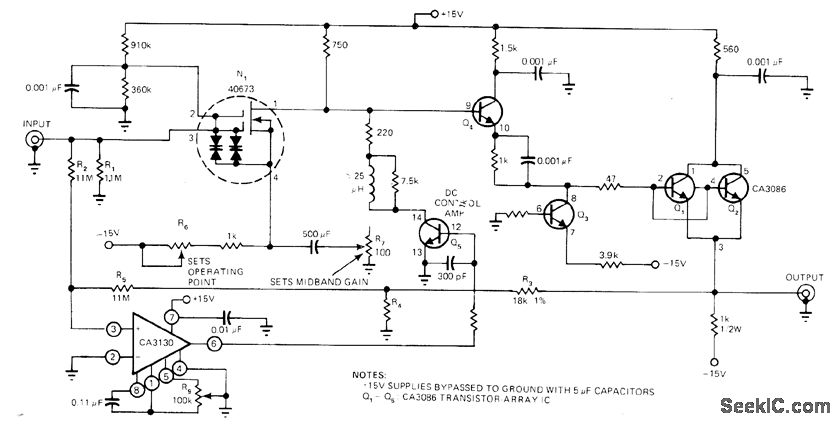

Wkleband amplifier handles inputs up to 100 mV P-P and drives 1-kilohm load, to meet requirements of oscilloscope preamps, instrumentation and pulsesignal amplifiers, and video signal processots. High-frequency gain is provided by 40673 dual-gate MOSFET. Low-frequency gain with DC stabilization is provided by CA3130 CMOS opamp. Transistors Q1-Q5 are part of CA3086 transistor-array IC. Values of R3 and R4 in feedback path establish amplifier gain. R6 sets operating point of N1 for 10-mA drain current. Base resistor ofQ3 is 1 kilohm.-H. A. Wittlinger, CMOS Op Amp, MOSFET Implement Wideband Amplifier, EDN Magazine, June 20, 1977, p 114.
