0M8839PS-K9G216 Digital monolithic small signal processing integrated circuit diagram

Published:2011/9/13 19:47:00 Author:Nancy | Keyword: small signal processing , integrated circuit | From:SeekIC

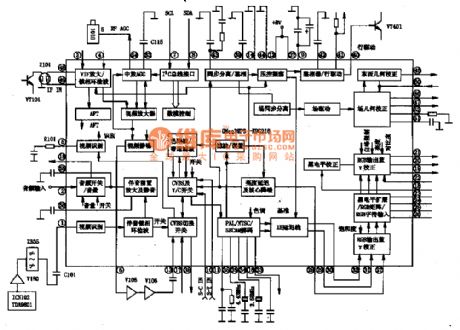

The 0M8839PS-K9G216 is a new generation of monolithic TV V, C, D processing integrated circuit of Philips (a product of the subsidiary in Taiwan). It is widely used in all kinds of a new generation of digital big TV screens. 1. The function and characteristics The 0M8839PS-K9G216 integrated circuit contains a multi system PLL medium frequency demodulation circuit, 4.5-6.5 MHz multi format FM sound intermediate frequency demodulation circuit, self-adjusting PAL/NTSC/SECAM color decoder, 1 line baseband delay line, comb filter, dynamic skin color blue enhance correction circuit, line synchronous controlled by double loop, line/field oscillation and efficient line/field excitation circuitry and east/west pulvinar calibration pulse output and some other units.
