001_Hz_to_7_MHz

Published:2009/7/1 5:20:00 Author:May | From:SeekIC

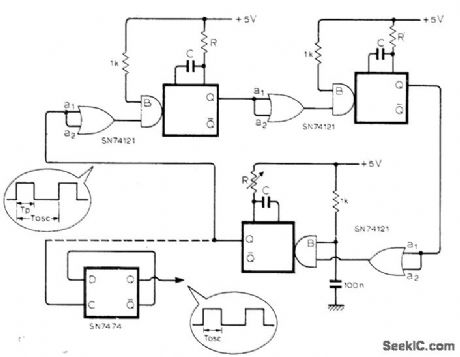

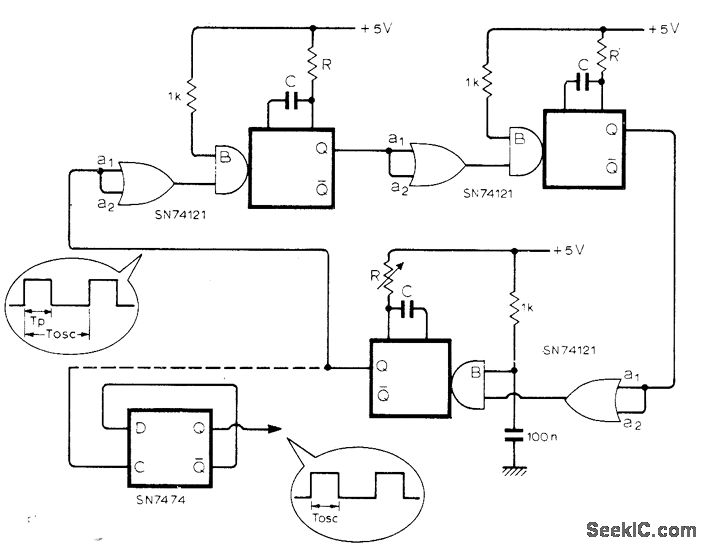

Generates square waves suitable for clock signals in sequential digital circuits, with values of RC pairs determining period in rangefrom about 150 ns to 120 s. To obtain equal mark-space ratio, set oscillator to half the required period and add bistable SN7474 divider as shown by dashed line,-P. J. Best, Monostable Ring Oscillator. Wireless World. March 1976. p 89.
