the radiation detector (CD4011)

Published:2011/9/8 6:22:00 Author:Ariel Wang | Keyword: radiation | From:SeekIC

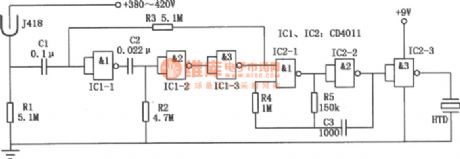

It is the radioactive beam monitor circuit.It consists of radiation testing sensor,two input ends and four NOT-AND gates.It could be used to detect ray α、γ、β and X.It has high sensibility.When low-level radiation detected,the detector will give out alarm sound every now and then.When the radiation is over standard,it will give out alarm sound constantly.
