the optical tester of 555

Published:2011/8/12 21:10:00 Author:Ariel Wang | Keyword: 555, optical tester | From:SeekIC

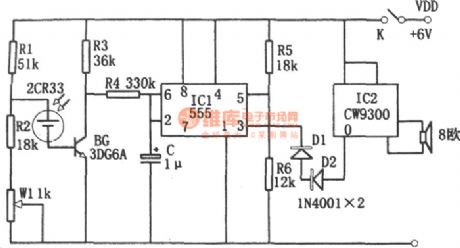

It is the optical tester circuit.It consists of photoelectric sensor,monoflop and audio circuit.The photoelectric sensor uses photocell 2CR33.
