the air-condtioning circuit of Daewoof Racer

Published:2011/5/21 3:25:00 Author:Borg | Keyword: air-condtioning, Daewoof Racer | From:SeekIC

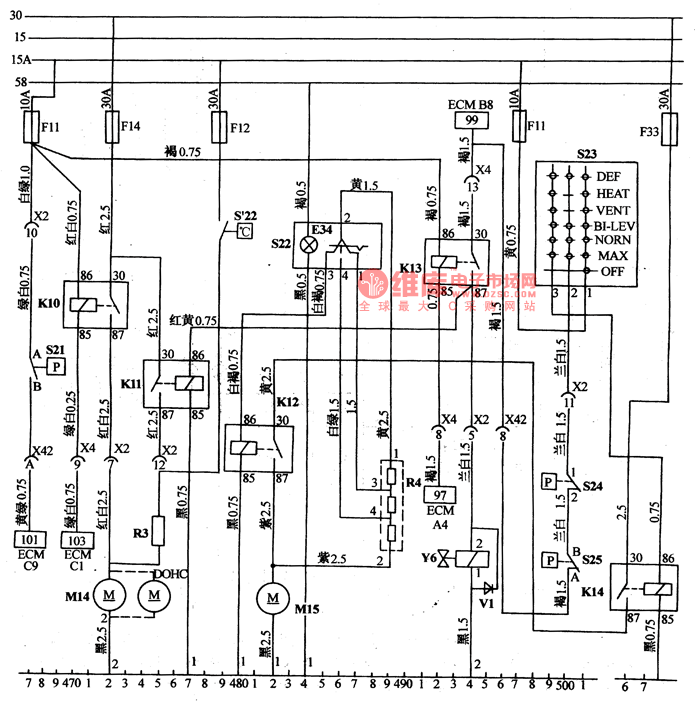

(11)the air-conditioning circuitAll the air-conditioning system is under the control of the switch S23. When it is at the OFF gear, the circuit is cut off, there is no heating or cooling. HEAT gear means the interior air is heated but not cooling. VENT gear means ventilation, there is no heating or cooling. DEF means defrost, the heater blows warm air to the windscreen, and the cooling system also can be turn on to dry the interior air(the temperature is auto controlled); BL-LEV gear means two levels of air is to be cooled or heated. NORN means normally cooling.
