simple VSP3010 equivalent input circuit

Published:2011/9/15 1:43:00 Author:chopper | Keyword: simple, equivalent input | From:SeekIC

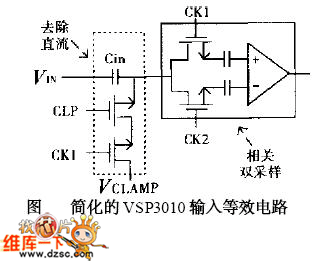

VSP3010 is one of appropriative integrated chips thatare produced by company Burr-Brown and it is used to process CCD signals.It can process signals from channel 1 or channel 3.Each channel has the capability of signal sampling,black level adjustment and programmable gain amplification and then enter 12-bit A/ D whose sampling rate is 12 MHz through multiple selector.Its single-channel signal processing circuit is as following picture.
