integrated block internal box circuit

Published:2011/4/29 0:50:00 Author:TaoXi | Keyword: integrated block, internal box circuit | From:SeekIC

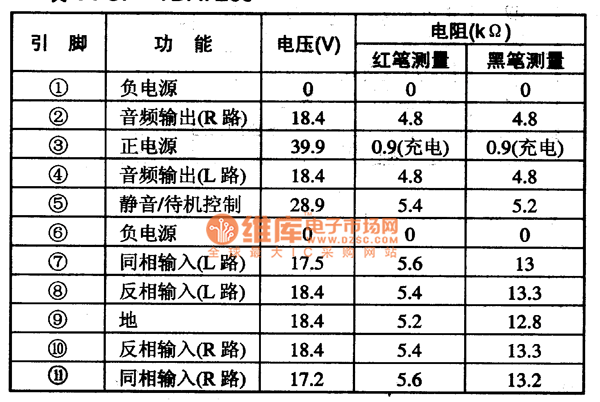

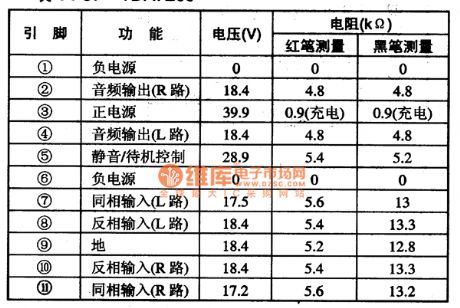

1.Features The output power of TDA7265 is 25W per channel; operating supply voltage range is ±25V, also it has the mute and standby functions. This device has the two channels audio power amplifier IC, the over-current protection circuit, the thermal protection circuit and other circuits. 2.Pin functions and data The integrated block internal box circuit of the TDA7265 is as shown in figure 23, this ic is in 11-pin single in-line package, the pin functions and data is as shown in table 137.
