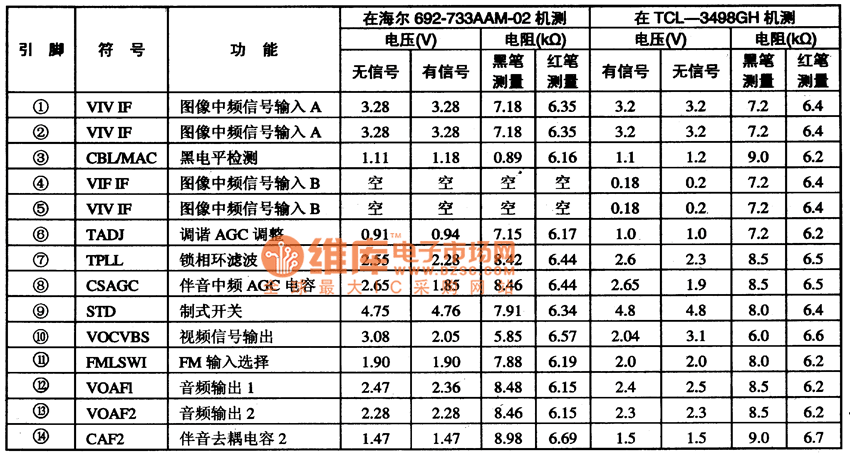

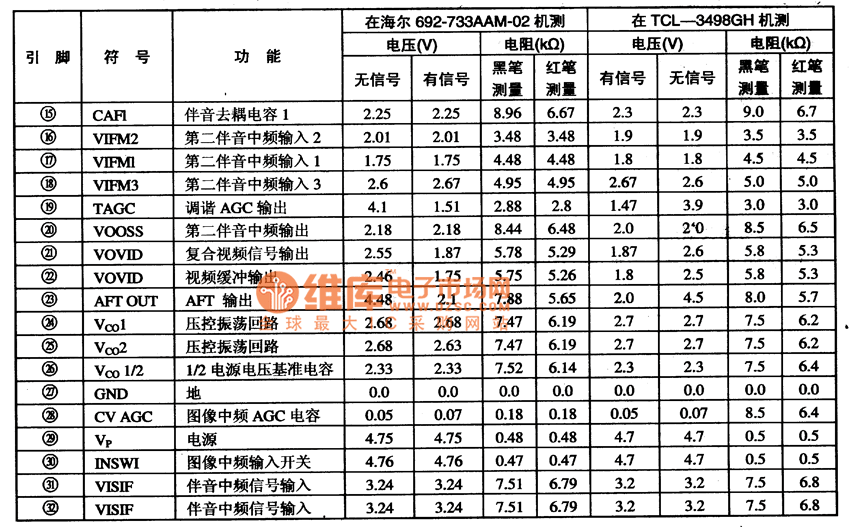

function and data of pins of integrated circuit TDA9815

Published:2011/7/25 2:37:00 Author:chopper | Keyword: function, data, pins, integrated circuit | From:SeekIC

TDA9815--Intermediate frequency signal processing integrated circuit TDA9815 is the intermediate frequency signal processing integrated circuit produced by Philips,which is applied to large-screen color TVs.1.function characteristics　　TDA9815 IC contains the image intermediate frequency signal processing circuit, accompanying sound IF signal processing circuit, voltage-controlled oscillator circuit, the image IF input switch circuit, standard switching circuit, medium-level AGC circuit,tuner AGC circuit, AFT control circuit, and other auxiliary circuits.
