chang an Antelope car ABS circuit diagram

Published:2011/9/15 22:53:00 Author:Rebekka | Keyword: chang an Antelope , car ABS | From:SeekIC

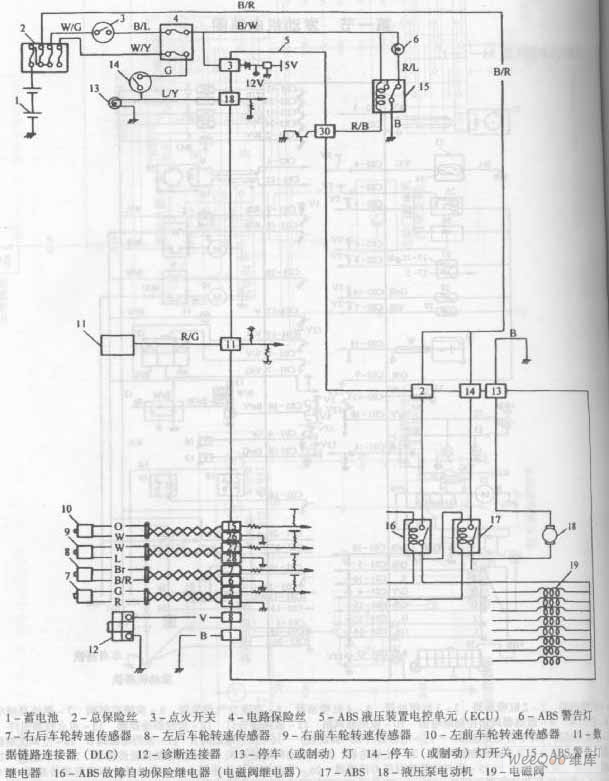

chang'an Antelope car ABS circuit diagram is shown as above. 1. Battery 2. The total fuse 3. Ignition switch 4. 5.ABS fuse circuit hydraulic unit electronic control unit (ECU) 6.ABS warning light 7. The right hand wheel speed sensor 8. Left rear wheel speed sensor 9. The right front wheel speed sensor 10. left front wheel speed sensor 12. diagnostic connector 13. stop (or brake) light 14. stop (or brake) light switch 16.ABS failsafe relay (solenoid valve relay) 17.ABS 18. hydraulic pump motor 19. solenoid valve
