ZhongHua saloon car ABS circuit 2

Published:2011/7/11 2:48:00 Author:TaoXi | Keyword: ZhongHua, saloon car, ABS | From:SeekIC

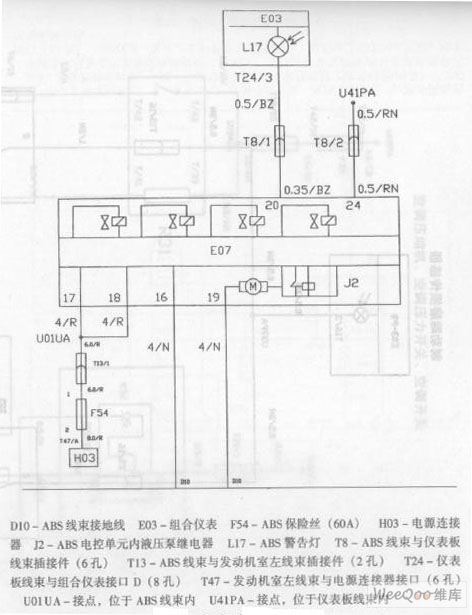

ZhongHua saloon car ABS circuit D10-ABS wiring harness ground wireE03-Combination instrument F54-ABS fuse (60A)H03-power supply connectorJ2-ABS electric control unit hydraulic pump relay L17-ABS alarm lightT8-ABS wiring harness and dashboard wiring harness plug connector (6 holes)T13-ABS wiring harness and engine room left wiring harness plug connector (2 holes)T24-Dashboard wiring harness and combination instrument interface D (8 holes)T47-Engine room left wiring harness and power supply connector interface (6 holes)U01UA-Connection point, in the ABS wiring harnessU41PA-Connection point, in the dashboard wiring harness
