ZhongHua saloon car ABS circuit 1

Published:2011/8/8 1:45:00 Author:TaoXi | Keyword: ZhongHua, saloon car, ABS | From:SeekIC

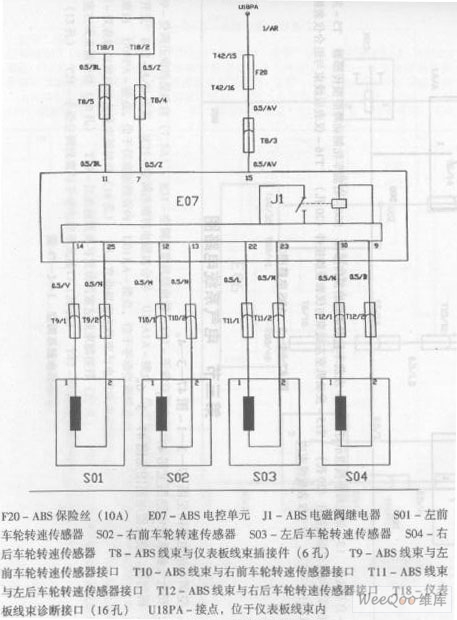

F20-ABS fuse(10A) E07-ABS electronic control unit J1-ABS electromagnetic valve relay S01-left front wheel revolution speed transducer S02-right front wheel revolution speed transducer S03-left rear wheel revolution speed transducer S04-right rear wheel revolution speed transducer T8-ABS wiring harness and dashboard wiring harness connector T9-ABS wiring harness and left front wheel revolution speed transducer interface T10-ABS wiring harness and right front wheel revolution speed transducer interface T11-ABS wiring harness and left rear wheel revolution speed transducer interface T12-ABS wiring harness and right rear wheel revolution speed transducer interface T18-dashboard wiring harness diagnosis interface U18PA-connection point of the dashboard wiring harness.
