Zastava 7200 starting, ignition system circuit diagram

Published:2011/5/13 2:52:00 Author:Ecco | Keyword: Zastava, starting, ignition system | From:SeekIC

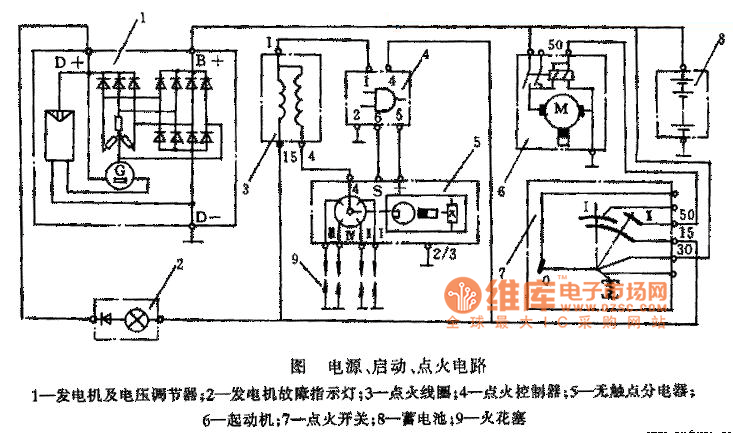

1 - generator and voltage regulator; 2 - generator fault indicator; 3 - ignition coil; 4 - ignition controller; 5 - non-contact distributor; 6 - starter; 7 - ignition switch; 8 - battery; 9 - spark plug
