Toilet automatic exhaust fan circuit diagram

Published:2011/4/15 5:36:00 Author:Rebekka | Keyword: Toilet automatic exhaust fan | From:SeekIC

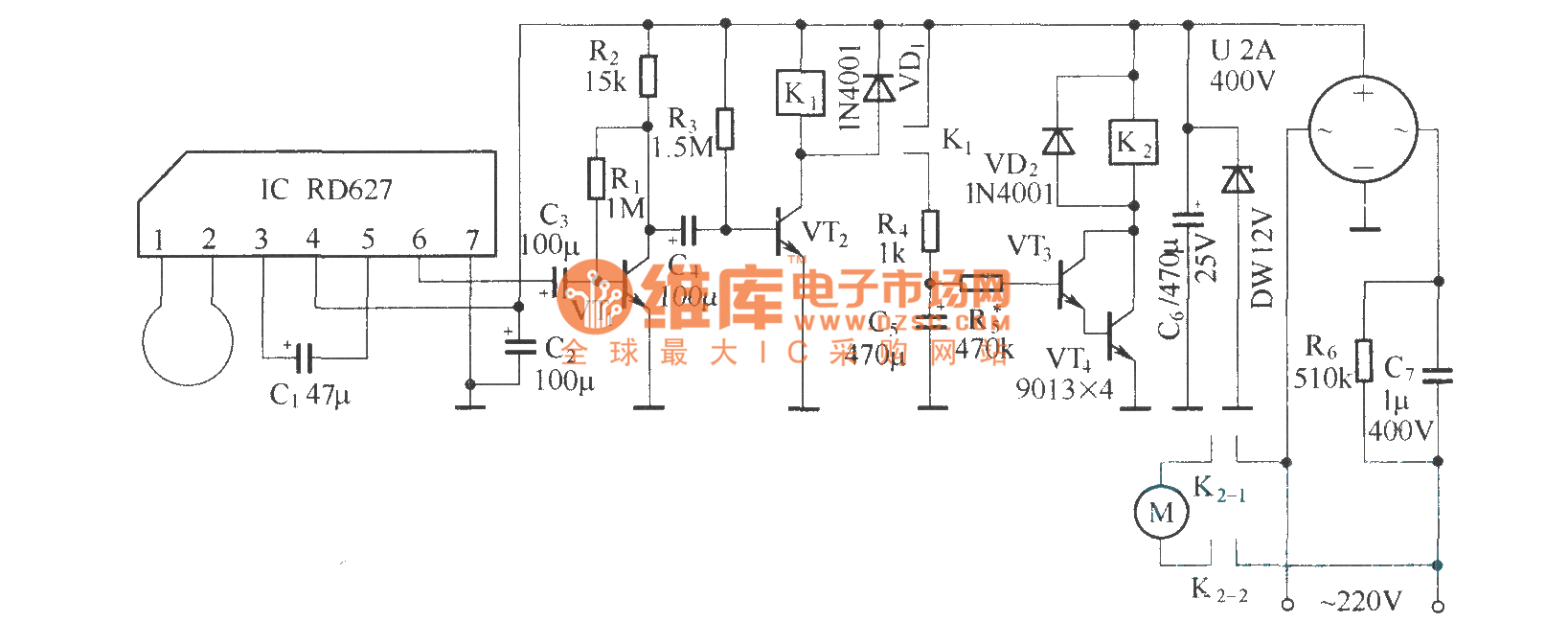

Add a set of automatic control device on the basic toilet automatic exhaust fan. It will be open when people get in and it is self-closing after people left. It is convenient and flexible to use. Its circuitous philosophy is shown in the figure.
