The wide wavelength random noise generator

Published:2011/6/15 2:52:00 Author:Borg | Keyword: wide wave, noise generator | From:SeekIC

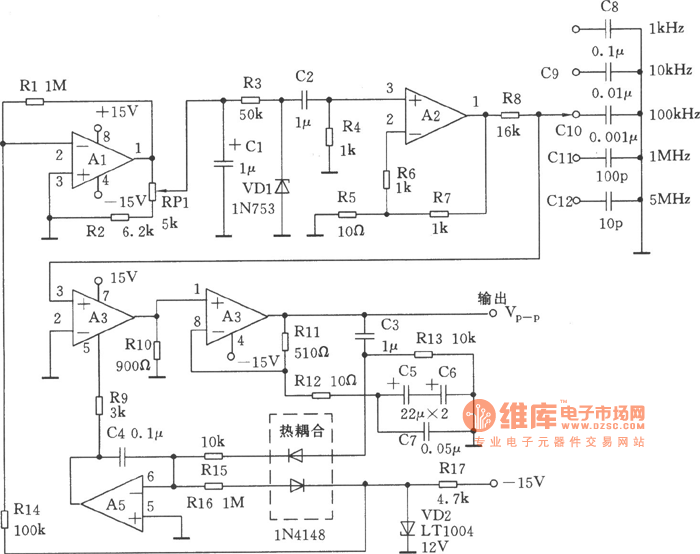

In the figure, the circuit can provide a noise source whose RMS amplitude is adjustable, the band width can be adjusted. The RMS output of his circuit is 1kHz～5MHz, and the band width can reach 300mY, the frequency band has 5 gears to choose from.
