The transmission SIL circuit fault detection of Daewoo ESPERO

Published:2011/5/17 2:33:00 Author:Borg | Keyword: SIL, fault detection, Daewoo ESPERO | From:SeekIC

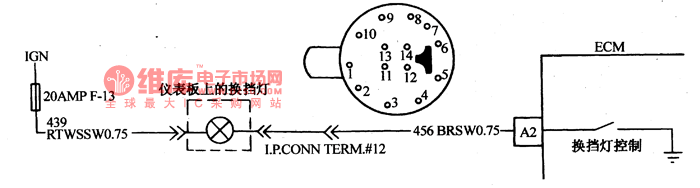

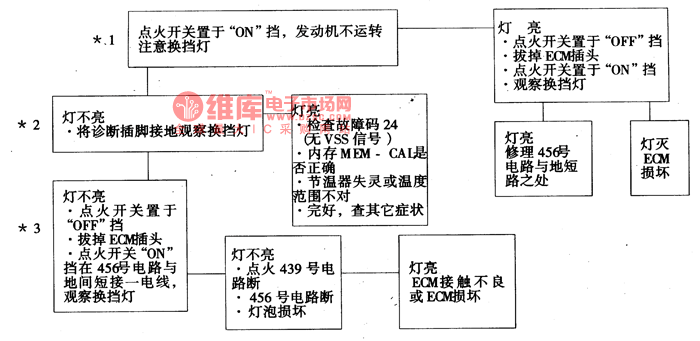

In the Daewoo ESPERO of hand transmission, SIL can remind the driver to shift the transmission to another gear according to the rotating speed and load of the engine and the car speed, by which the engine was made sure to consume the minimum oil. The shift indicator light is on the dashboard, which is lighted by the ECM driver. *1.There the SIL should be off, if not, that means the No. 456 circuit is short or ECM is broken.*2.When the detection plug connects with the ground, ECM should connect No.456 with the earth and the SIL should light.
